Hinvert 4KW 24V MPPT Solar Inverter with Built-in WiFi Price In Bangladesh.

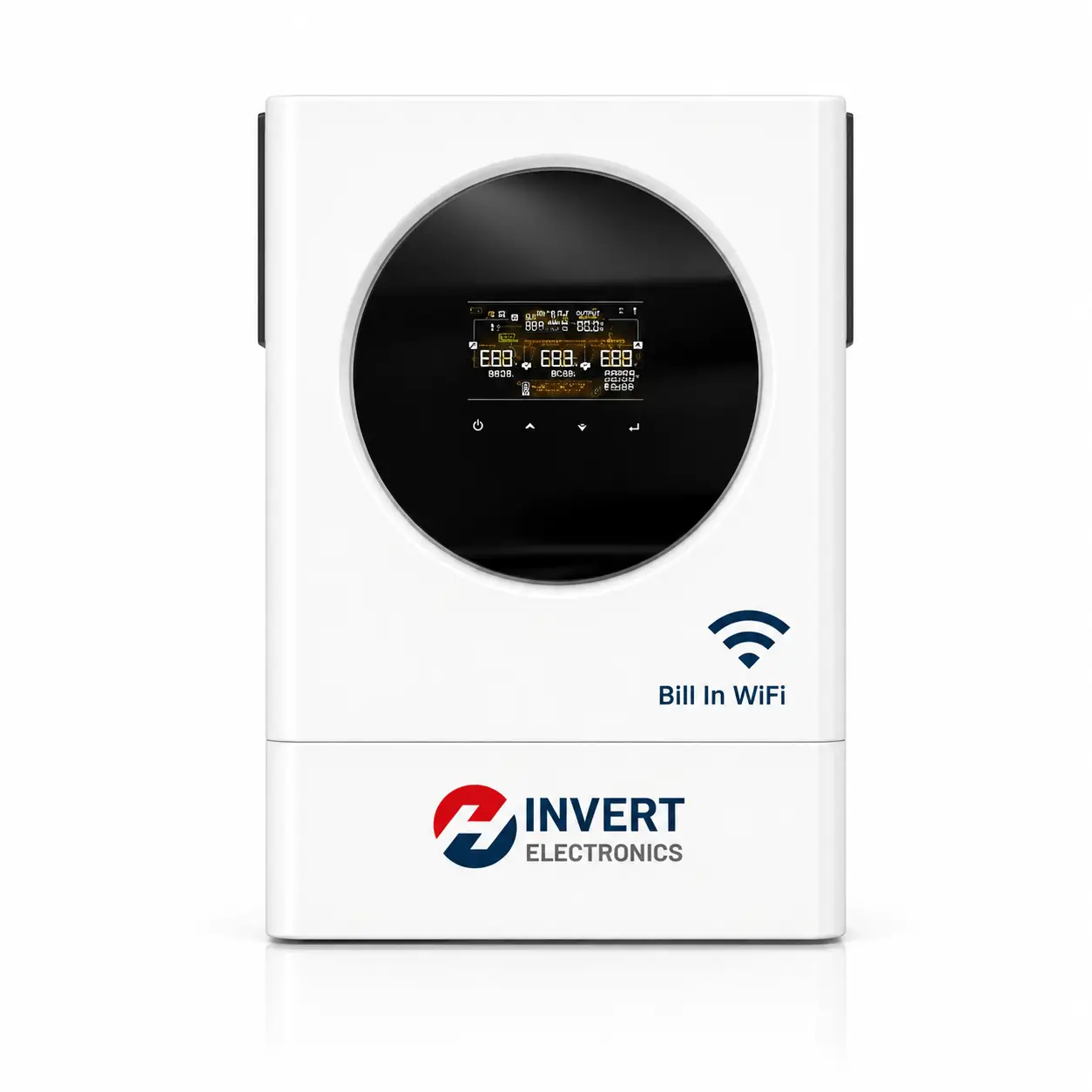

Hinvert 4KW 24V MPPT Solar Inverter with Built-in WiFi



Hinvert 4KW 24V MPPT Solar Off-Grid Hybrid Inverter with Built-in WiFi – Overview

The Hinvert HMK-Plus 4KW 24V PV-5000W Single Phase Off-Grid Solar Inverter is a high-capacity hybrid inverter designed for demanding residential and commercial solar applications. Equipped with advanced MPPT technology, pure sine wave output, and built-in WiFi monitoring, this inverter delivers efficient energy conversion and reliable power supply. Its robust design ensures stable performance for running heavy appliances and continuous off-grid operation.

Key Benefits

• Delivers stable 4000W output capacity for load handling.
• Advanced MPPT charge controller supports up to 5000W PV input for maximum solar efficiency.
• Pure sine wave output ensures safe operation for sensitive electronics and appliances.
• Built-in WiFi monitoring enables real-time system tracking and remote management.
• Supports operation with or without battery, providing flexible installation options.
• High efficiency up to 97–98% reduces power loss and improves overall system performance.
• Wide MPPT voltage range (60V–450VDC) allows compatibility with various solar panel setups.
• Compact design with LCD display ensures easy monitoring and installation.

For a complete solar solution, pair this inverter with high-quality solar panels and a reliable battery bank to ensure efficient energy generation, storage, and uninterrupted power supply for both day and night usage.

Technical Specifications

Parameter	Value
Brand	Hinvert
Model	HMK-PLUS 4KW
Product Type	MPPT Off-Grid Hybrid Solar Inverter
Rated Power	4000W / 4000VA
DC Input	24VDC, 150A
Battery Voltage	24V DC
Floating Charge Voltage	54VDC
Overcharge Protection	66VDC
AC Input Voltage	230VAC
AC Output	230VAC, 50/60Hz, Single Phase
Frequency	50Hz / 60Hz
Waveform	Pure Sine Wave
Max PV Power	5000W
Nominal PV Voltage	240VDC
Max Solar Voltage (VOC)	500VDC
MPPT Voltage Range	60V – 450VDC
MPPT Charging Current	120A
Default Charging Current	60A
DC Output	27VDC
Efficiency	Up to 98%
Communication Interface	COMMPORT
WiFi Monitoring	Built-in
Works Without Battery	Yes
Sleeping Mode	Yes
Display	LCD Display
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
Dimensions (H*W*D)	440 x 300 x 128 mm
Weight	11 kg
Country of Origin	China
Certification	RoHS & CE
Warranty	2 Years (1 Year Warranty + 1 Year Service Warranty)
