POWMR 60A Mppt Solar Charger Controller price in Bangladesh.

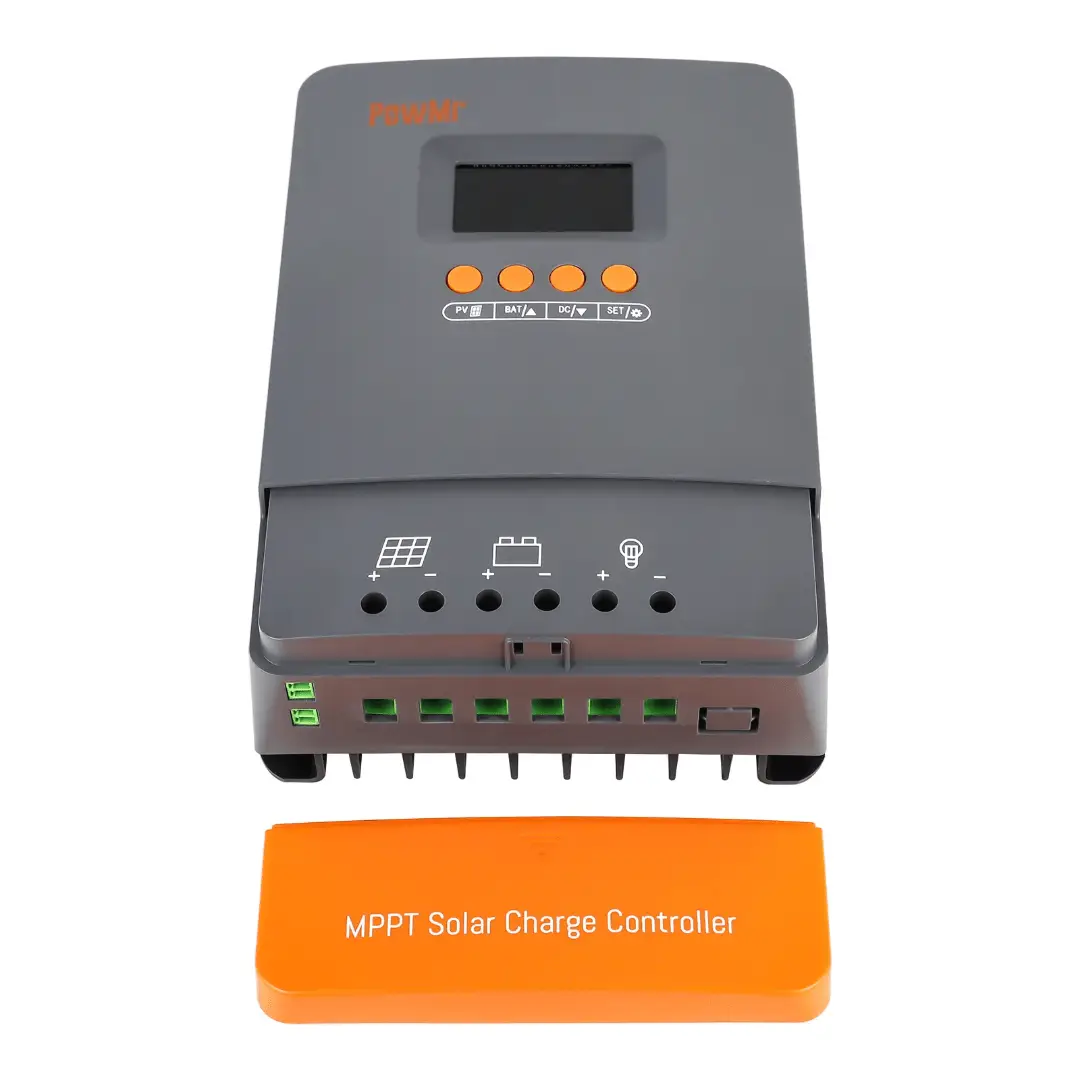

POWMR 60A Mppt Solar Charger Controller



* MPPT charging current up to 60A

* Compatible with 12V/24V/36V/48V energy storage systems * Supports charging for lead-acid or lithium batteries * Customizable charging current limit * Charging efficiency up to 97% * Maximum power point tracking efficiency up to 99% * Supports up to 12 units in parallel * External temperature sensor for precise battery temperature monitoring * Built-in multiple protection functions for safe operation * Heat sink design for efficient cooling * Built-in lithium battery activation function Specification

Model	POW-M60-ULTRA
Solar Input Parameters
Max. Input Power:
For 12V System	720W
For 24V System	1440W
For 36V System	2100W
For 48V System	2800W
Input Voltage Range:
For 12V System	20V~80V
For 24V System	37V~105V
For 36V System	50V~160V
For 48V System	72V~160V
Battery Charging Parameters
Charging Technology	MPPT
Charging Algorithm	3 Stages
Nominal System Voltage	12V/24/36V/48V
Battery Voltage Range	9~60V
Rated Charging Current	60A
Conversion Efficiency	≥ 98. 1%
Max. Power Point Tracking Efficiency	>99%
DC Output Parameters
DC Output Parameters	25A
General Parameters
IP Class	IP32
Operating Temperature Range	-35℃ ~+45℃
Humidity Range	≤ 95% Non-condensing
Altitude	<3000m
Dimensions	221x163x77mm /8.7×6.42×3.03in
Net Weight	1442g / 3.18lb



Categories: Charge Controller
